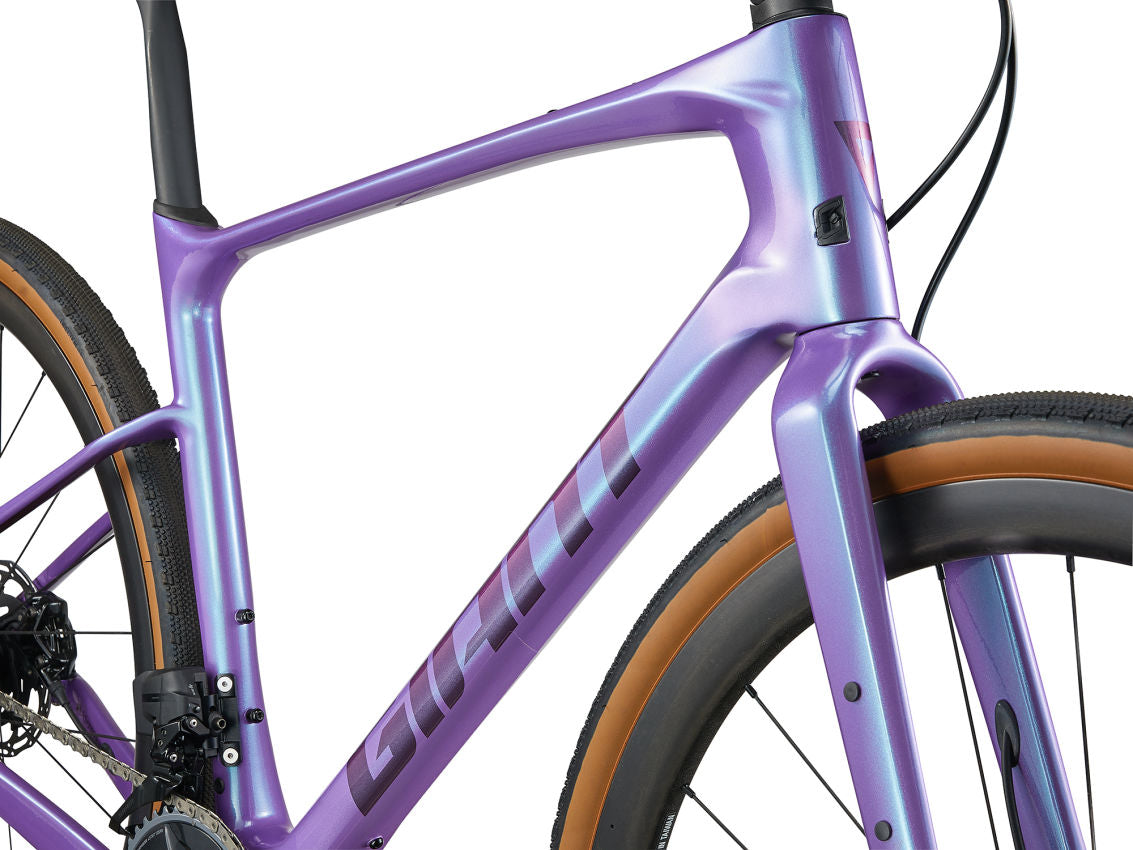

Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.

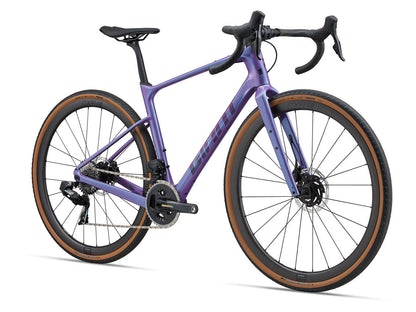

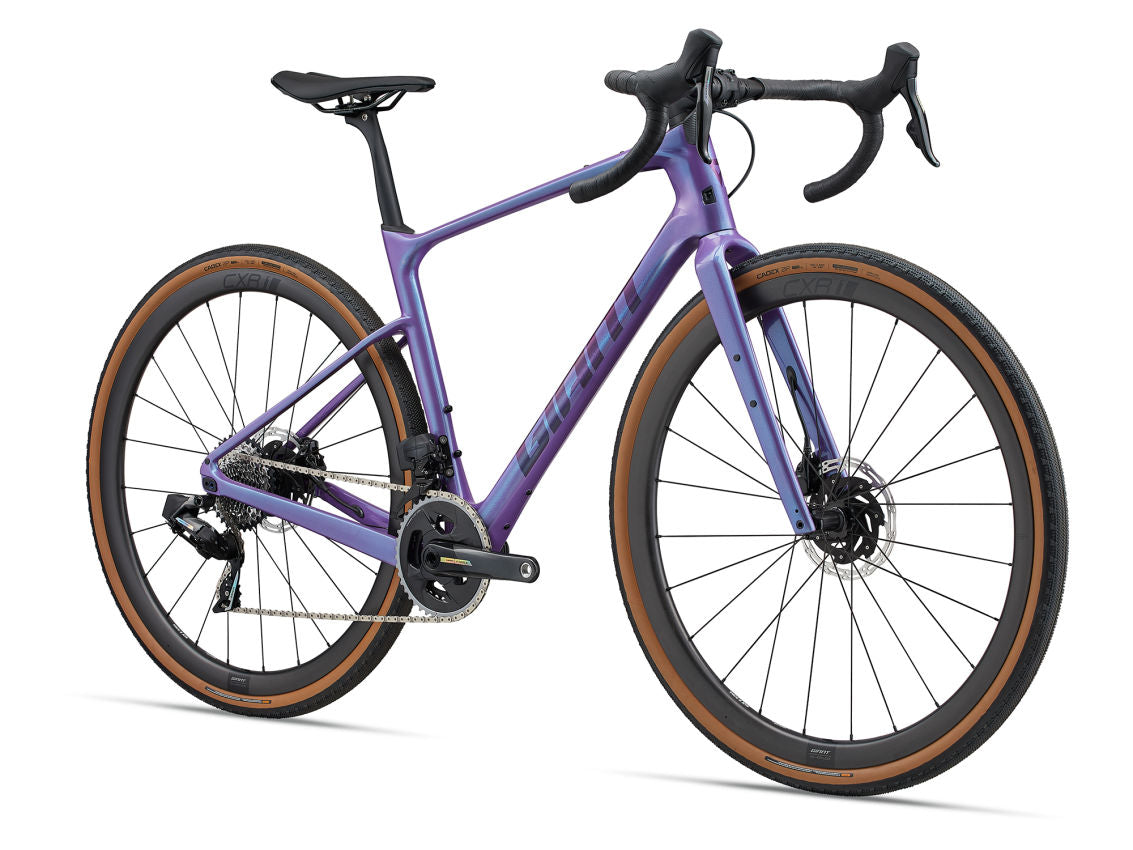

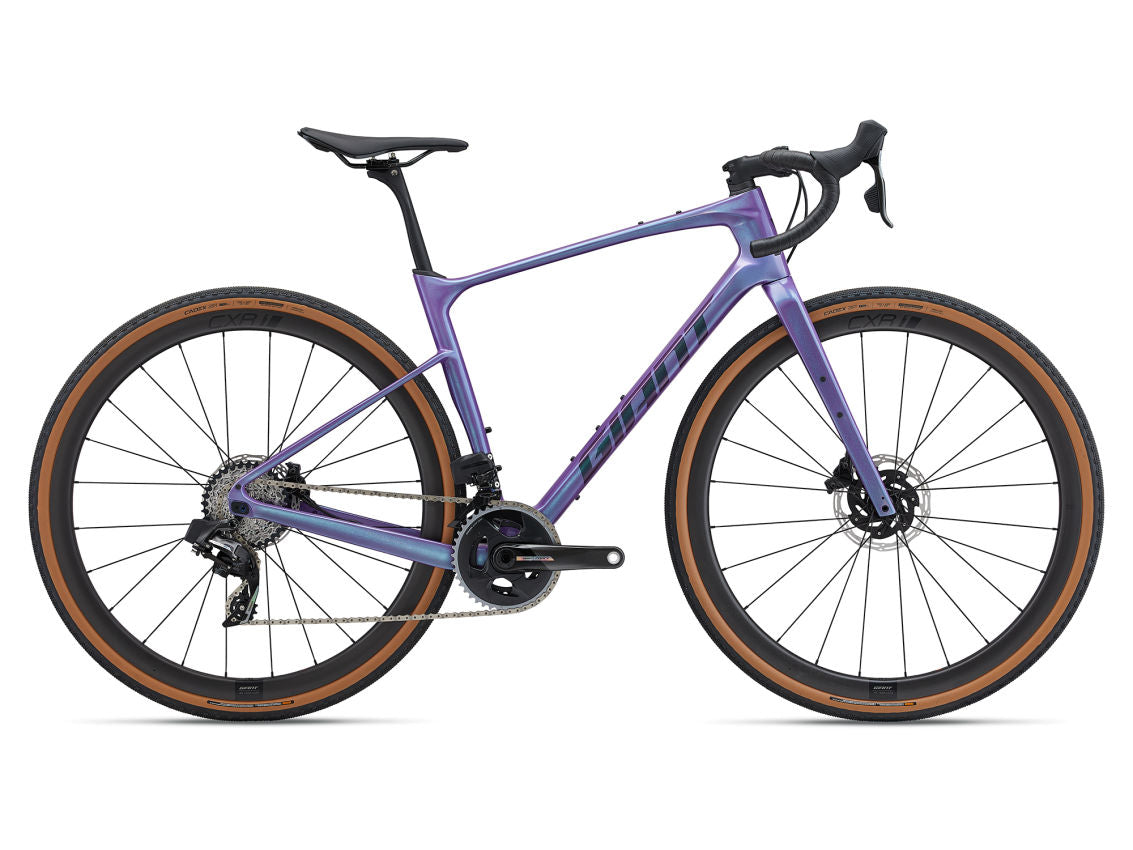

Bicicleta gravel Giant REVOLT ADVANCED PRO 0 MY24
Bicicleta gravel Giant REVOLT ADVANCED PRO 0 MY24
Financia con B21 ( cotiza aquí)
Bajas existencias: quedan 2
SKU:1079008104
No se pudo cargar la disponibilidad de retiro
La gravilla rápida es gravilla divertida. La bicicleta de elección para los profesionales de carreras de gravilla de Giant, este velocista súper ligero ofrece un paseo suave sobre caminos accidentados y es adaptable a todo tipo de condiciones y estilos de conducción.
FACTORES CLAVE DE RENDIMIENTO
LIGERA Y EFICIENTE
El cuadro de carbono avanzado y la horquilla de carbono Advanced SL ahorran un total combinado de 200g en comparación con la generación anterior. La geometría actualizada incluye un pedalier más bajo, una distancia más larga y un ángulo de dirección más pronunciado para mejorar la aceleración y la escalada.
CAPACIDAD DE AJUSTE
La unión de los tirantes del asiento con tubos de diámetro más pequeño absorbe golpes y vibraciones de la carretera. El manubrio de carbono Contact SLR D-Fuse y el tija de sillín D-Fuse trabajan en conjunto para optimizar la absorción de vibraciones sin sacrificar rigidez al tomar curvas, esprintar y escalar.
ADAPTABLE AL TERRENO
Un chip de volteo en el dropout trasero ajusta la distancia entre ejes: corto para una maniobrabilidad más rápida, o largo para una mejor estabilidad a alta velocidad. El ajuste largo también permite neumáticos de mayor diámetro de hasta 53mm. Puedes elegir el tija de sillín D-Fuse incluido para una máxima flexibilidad, o cambiar a un tija de sillín redondo de 30.9mm o un tija de sillín telescópico.
Techs & Features
Professional Grade raw carbon fiber is woven in our composite factory to produce our lightest, stiffest and highest quality frames. This is the technology used by Giant’s pro racers in almost every cycling discipline.

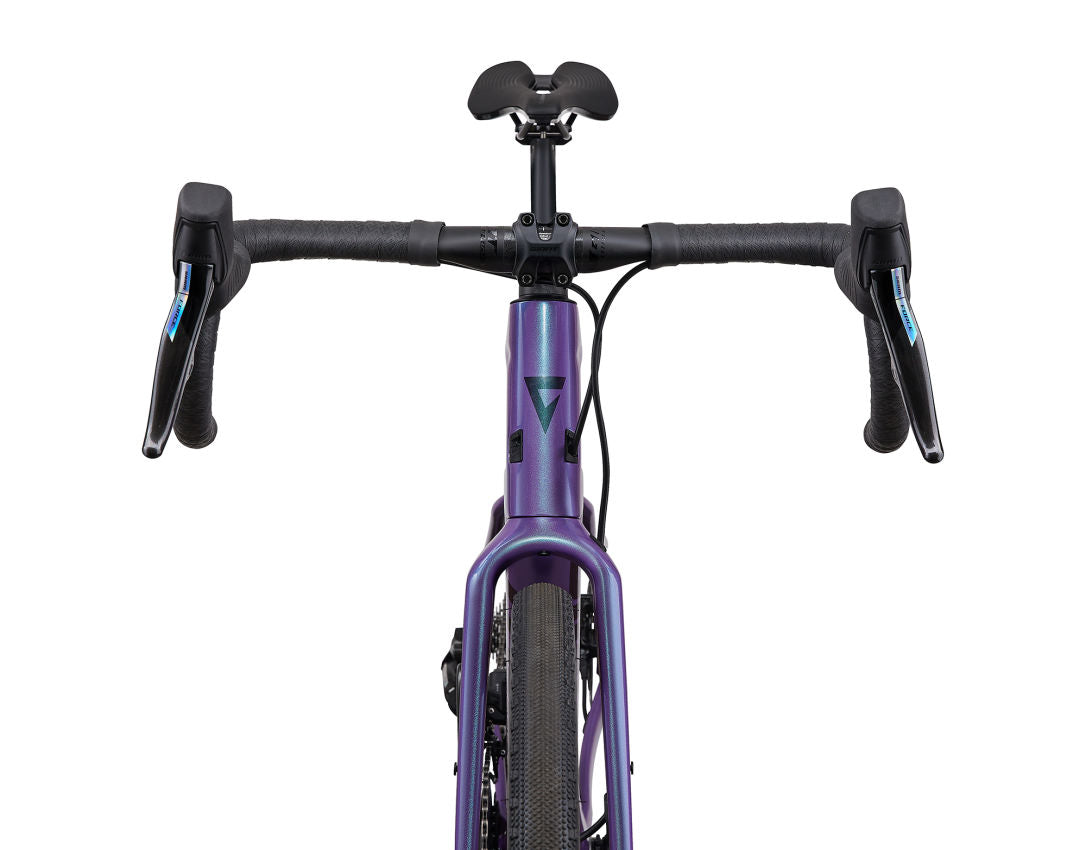

The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride farther, faster.
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
Allows riders to quickly adjust the geometry and rear-wheel tire clearance with eccentric, offset two-position hardware in the rear wheel dropouts.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

XS | S | M | ML | L | XL | ||
---|---|---|---|---|---|---|---|
SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | ||
A | Seat Tube Length (mm) (inch) | 43016.9 | 45017.7 | 47018.5 | 49019.3 | 51020.1 | 53020.9 |
B | Seat Tube Angle (degrees) | 74.0° | 73.5° | 73.5° | 73.0° | 73.0° | 73.0° |
C | Top Tube Length (mm) (inch) | 54021.3 | 55021.7 | 56022 | 57522.6 | 58523 | 60023.6 |
D | Head Tube Length (mm) (inch) | 1254.9 | 1355.3 | 1505.9 | 1656.5 | 1807.1 | 1957.7 |
E | Head Tube Angle (degrees) | 70.0° | 71.0° | 71.5° | 72.0° | 72.0° | 72.0° |
F | Fork Rake (mm) (inch) | 502 | 502 | 502 | 502 | 502 | 502 |
G | Trail (mm) (inch) | 783.1 | 823.2 | 722.8 | 753 | 682.7 | 722.8 | 652.6 | 682.7 | 652.6 | 682.7 | 652.6 | 682.7 |
H | Wheelbase (mm) (inch) | 102440.3 | 103440.7 | 102040.2 | 103040.6 | 102640.4 | 103640.8 | 103140.6 | 104141 | 104141 | 105141.4 | 105641.6 | 106642 |
I | Chain Stay Length (mm) (inch) | 42516.7 | 43517.1 | 42516.7 | 43517.1 | 42516.7 | 43517.1 | 42516.7 | 43517.1 | 42516.7 | 43517.1 | 42516.7 | 43517.1 |
J | Bottom Bracket Drop (mm) (inch) | 803.1 | 813.2 | 803.1 | 813.2 | 803.1 | 813.2 | 803.1 | 813.2 | 803.1 | 813.2 | 803.1 | 813.2 |
K | Stack (mm) (inch) | 55621.9 | 57022.4 | 58623.1 | 60223.7 | 61624.3 | 63024.8 |
L | Reach (mm) (inch) | 38115 | 38115 | 38715.2 | 39115.4 | 39715.6 | 40716 |
M | Stand Over Height (mm) (inch) | 7241285.1 | 73128.8 | 74029.1 | 74729.4 | 75729.8 | 76430.1 | 77430.5 | 78030.7 | 79131.1 | 79731.4 | 80731.8 | 81432 |
N | Handlebar Width (mm) (inch) | 42016.5 | 42016.5 | 44017.3 | 44017.3 | 46018.1 | 46018.1 |
O | Stem Length (mm) (inch) | 502 | 602.4 | 702.8 | 803.1 | 803.1 | 903.5 |
P | Crank Length (mm) (inch) | 1706.7 | 1706.7 | 172.56.8 | 172.56.8 | 1756.9 | 1756.9 |
Q | Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |
-
SizesXS, S, M, M/L, L, XL
-
ColorsDigital Blurple/Iris
-
FrameAdvanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout
-

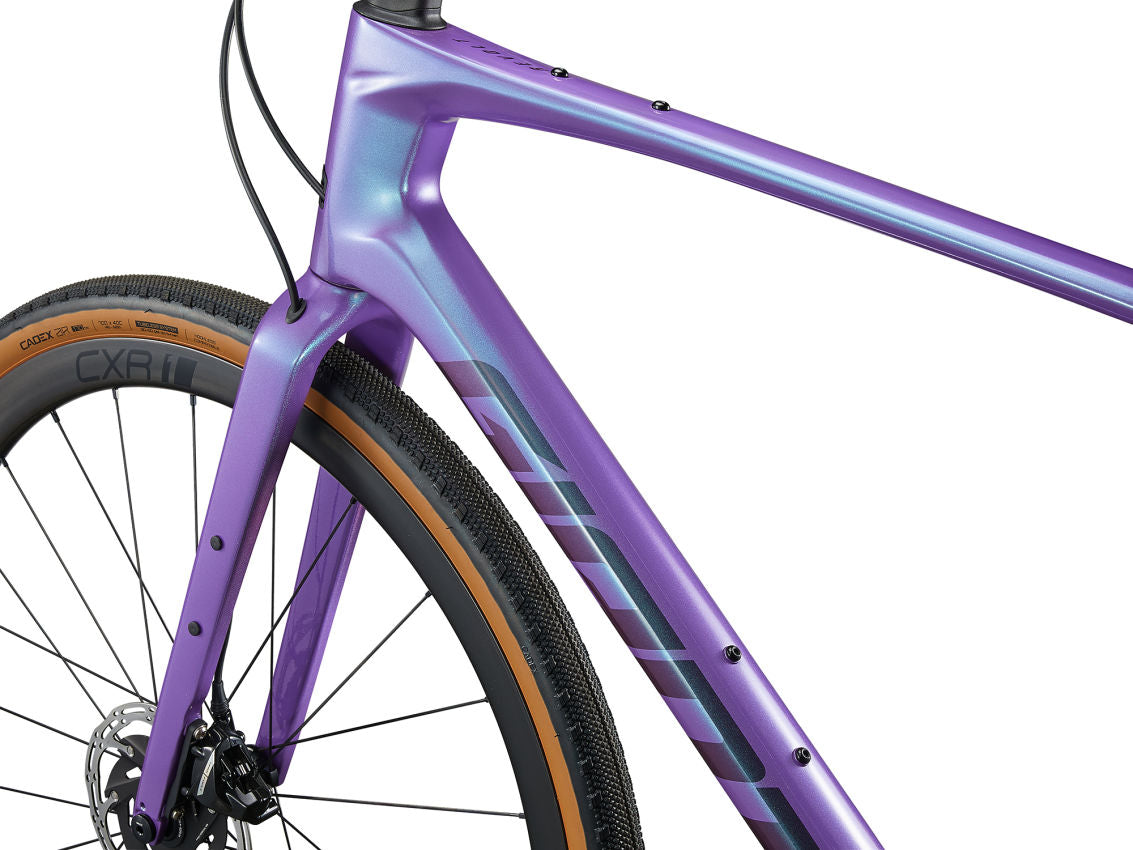

ForkAdvanced SL-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
-
ShockN/A
-
HandlebarGiant Contact SLR XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
-
GripsStratus Lite 3.0
-
StemGiant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
-
SeatpostGiant D-Fuse SLR w/ offset -5/+15
-
SaddleGiant Approach SL
-
PedalsN/A
-

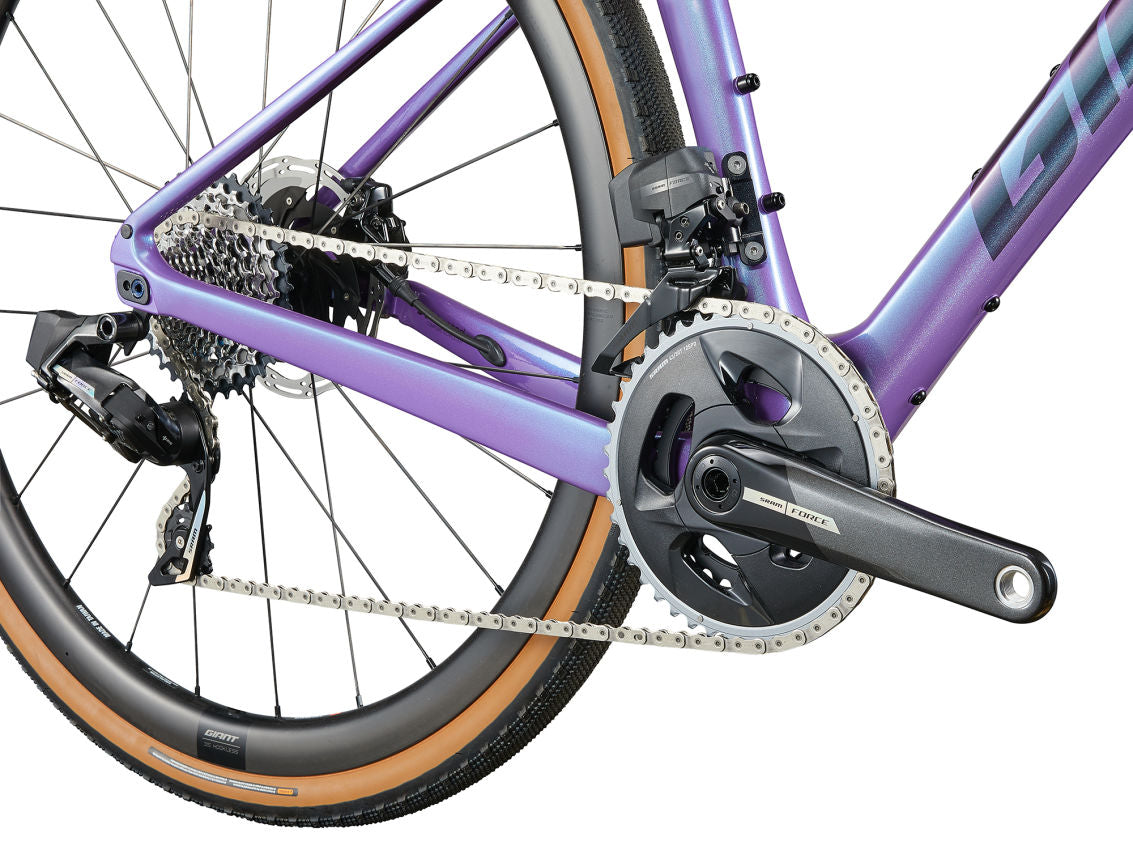

ShiftersSram Force AXS HRD, 2x12
-
Front DerailleurSram Force AXS Wide
-
Rear DerailleurSram Force AXS, Max 36T
-
BrakesSram ForceTap AXS HRD, SRAM CenterLine rotors [F]160mm, [R]160mm
-
Brake LeversSRAM Force AXS HRD (hydraulic road disc)
-
CassetteSram Force, XG-1270, 12-speed, 10-36
-
ChainSRAM FORCE D1, 12-speed
-
CranksetSram Force D2 DUB,30/43 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
-
Bottom BracketSRAM DUB, press fit
-
RimsGiant CXR 1 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm
-
Hubs[F] Giant AR alloy, CenterLock, 12mm thru-axle, [R] Giant AR alloy, DT350 36t ratchet driver, CenterLock, 12mm thru-axle
-
SpokesSapim CX-Ray
-
TiresCADEX AR, 700x40c, tubeless
-
Extrastubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position
-
WeightThe most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
*All specifications and prices listed are subject to change without notice.
